WL300
SPECIFICATIONS

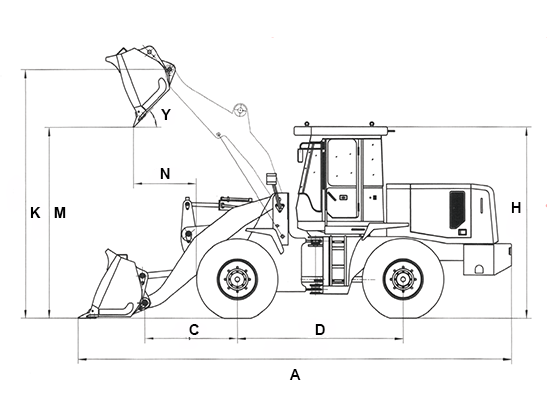

Dimensions(mm)
6890×2245×3070
Engine Model
WEICHAI WP6G
Power(KW)
92
Introduce
Standard Configurations:
Weichai engine 92kw, mechanical control, Beiian gearbox(SEM), Yunyu axle, warning light, adjustable steering wheel, and seat, the bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, toolbox.
Optional:
Dongfeng Cummins engine, quick hitch, air conditioning, joystick control, heater, all kinds of attachments, etc.
Specifications
| Type | Data |
|---|---|
| Engine Model: | WEICHAI WP6G |
| Rated Power(kw): | 92 |
| Rated Speed(rpm): | 2200 |
| Rated load(kg): | 3000 |
| Rated Bucket Capacity(m3): | 1.7-2.5 |
| Overall Size LxWxH(mm): | 6890×2245×3070 |
| Wheel base (mm): | 2660 |
| Wheel thread(mm): | 1800 |
| Max.breakout force (KN): | 127 |
| Max.dump height(mm): | 3100 |
| Dump distance(mm): | 1006 |
| Total time(s): | 9.15 |
| Operating Weight(kg): | 9600 |
| Tyre: | 17.5-25 |
