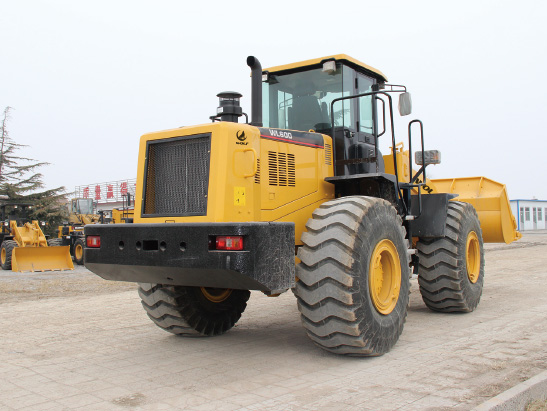

Wheel Loader
WL600
Certified
ISO9001:2008
Certified
Certified
Certified
Wheel Loader
Certified
ISO9001:2008
Certified
Certified
Certified
- Hydraulic steering allows for precise positioning and easy driving
- Pilot joystick control for single hand operation
- VDO (Germany) instrument panel for more accurate readings
- Electronic ZF (Germany) gearbox comes with wrist speed control for easy shifting through the gears
- Ergonomically designed air-conditioned cabin reduces external noises and vibrations
| Type | Data |
|---|---|
| Engine Model: | WEICHAI WD10G240 E21 |
| Rated Power(kw): | 175 |
| Rated Speed(rpm): | 2200 |
| Rated load(kg): | 6000 |
| Rated Bucket Capacity(m3): | 3.3 |

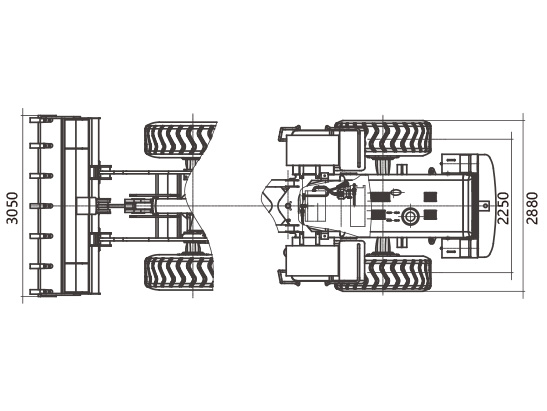

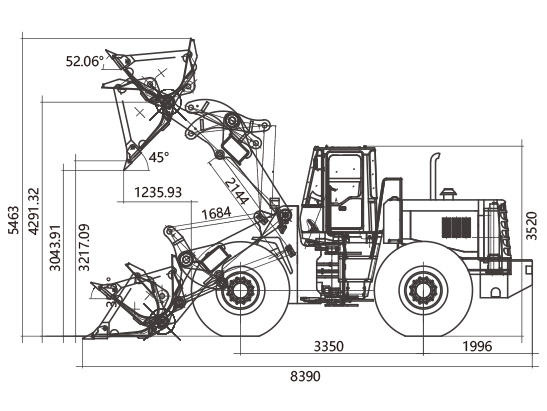

| Overall Size LxWxH(mm): | 8390×2880×3520 |
| Wheel base (mm): | 3200 |
| Wheel thread(mm): | 2250 |
| Max.breakout force (KN): | 204 |
| Max.dump height(mm): | 3448 |
| Dump distance(mm): | 1249 |
| Total time(s): | 10.8 |
| Operating Weight(kg): | 18200 |
| Tyre: | 26.5-25 |
