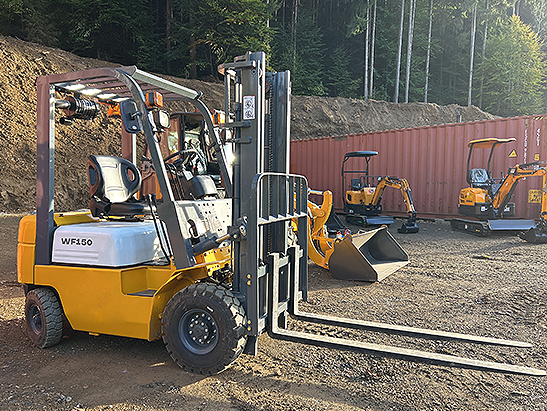

WF150
Certified
ISO9001:2008
Certified
Certified
Certified
Forklift
Certified
ISO9001:2008
Certified
Certified
Certified
| Specification | WF150 | ||
|---|---|---|---|
| Characteristics | |||
| Fuel type | - | Diesel | |
| Load capacity | kg | 1500 | |
| Load center | mm | 500 | |
| Lift height | mm | 3000 | |
| Full free lift height | mm | 135 | |
| Fork dimension | mm | 1070×122×40 | |
| Mast tilting angle | Front/Rear | Deg. | 6/12 |
| Min. turning radius | mm | 2280 | |
| Groud clearance | mm | 120 | |
| Overhead guard height | mm | 2070 | |
| Front overhang | mm | 425 | |
| Performance | |||
| Max. travel speed | Full load | km/h | 16 |
| Max. lift speed | Full load | mm/s | 550 |
| Max. traction power | Full load | KN | 16 |
| Dimensions | |||
| Max. gradeability | % | 20 | |
| Total length | With fork | mm | 3195 |
| Total length | Without fork | mm | 2275 |
| Total width | mm | 1070 | |
| Mast extended height | mm | 4030 | |
| Mast lowered height | mm | 1995 | |
| Chassis | |||
| Tyres | Front | - | 6.50-10-10PR |
| Rear | - | 5.00-8-8PR | |
| Wheelbase | mm | 1410 | |
| Tread | Front/Rear | mm | 890/920 |
| Service weight | Kg | 2890 | |
| Drive | |||
| Battery | Model | V/Ah | 12/100 |
| Motor | Power | - | Xinchai 485 |
