Telescopic Loader
Mini 780TT
Telescopic Loader

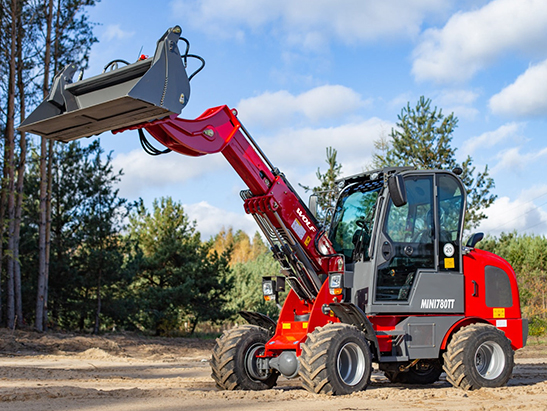

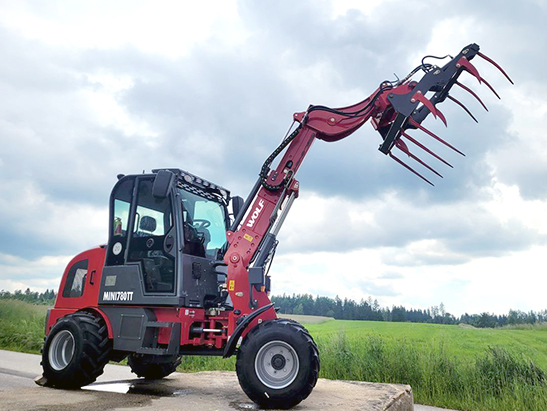

WOLF Mini780TT is a telescopic loaderbased on Mini780T. lt can reach higherlifting height and longer dumping dis-tance.lt is a universal helper for con-struction, on the farm, for gardening orlandscape work.
This wheel loader has a complete light-ing system including work lights and amodern cabin with heating, blower andwindscreen wiping and washing systemat the front. The doors of the cabin arefixed when open. The spring-loadedseat, the adjustable steering wheel andthe radio help make work more pleasant even on long working days.
| Type | Data |
|---|---|
| Engine Model: | Changchai390 |
| Rated Power(kw): | 25 |
| Rated Speed(rpm): | 2400 |
| Rated load(kg): | 1000 |
| Max Lifiting Capacity(kg) : | 1200 |
| Rated Bucket Capacity(m3): | 0.3-0.5 |

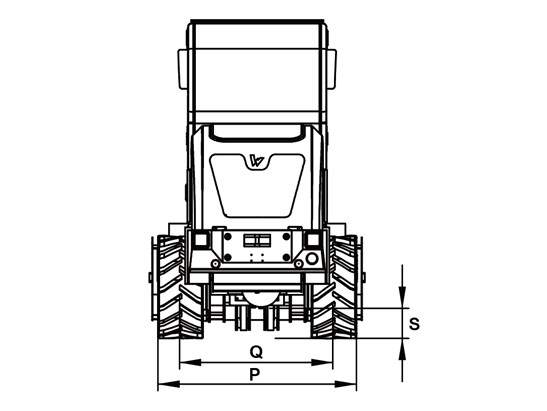

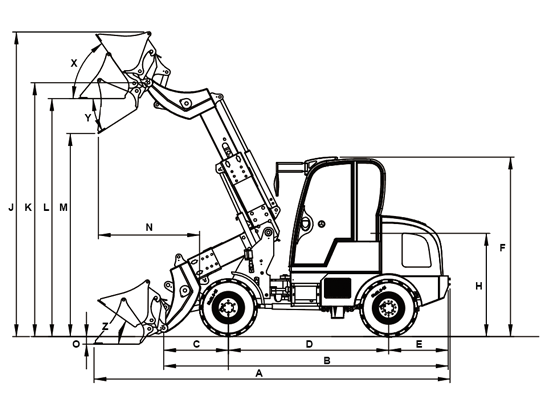

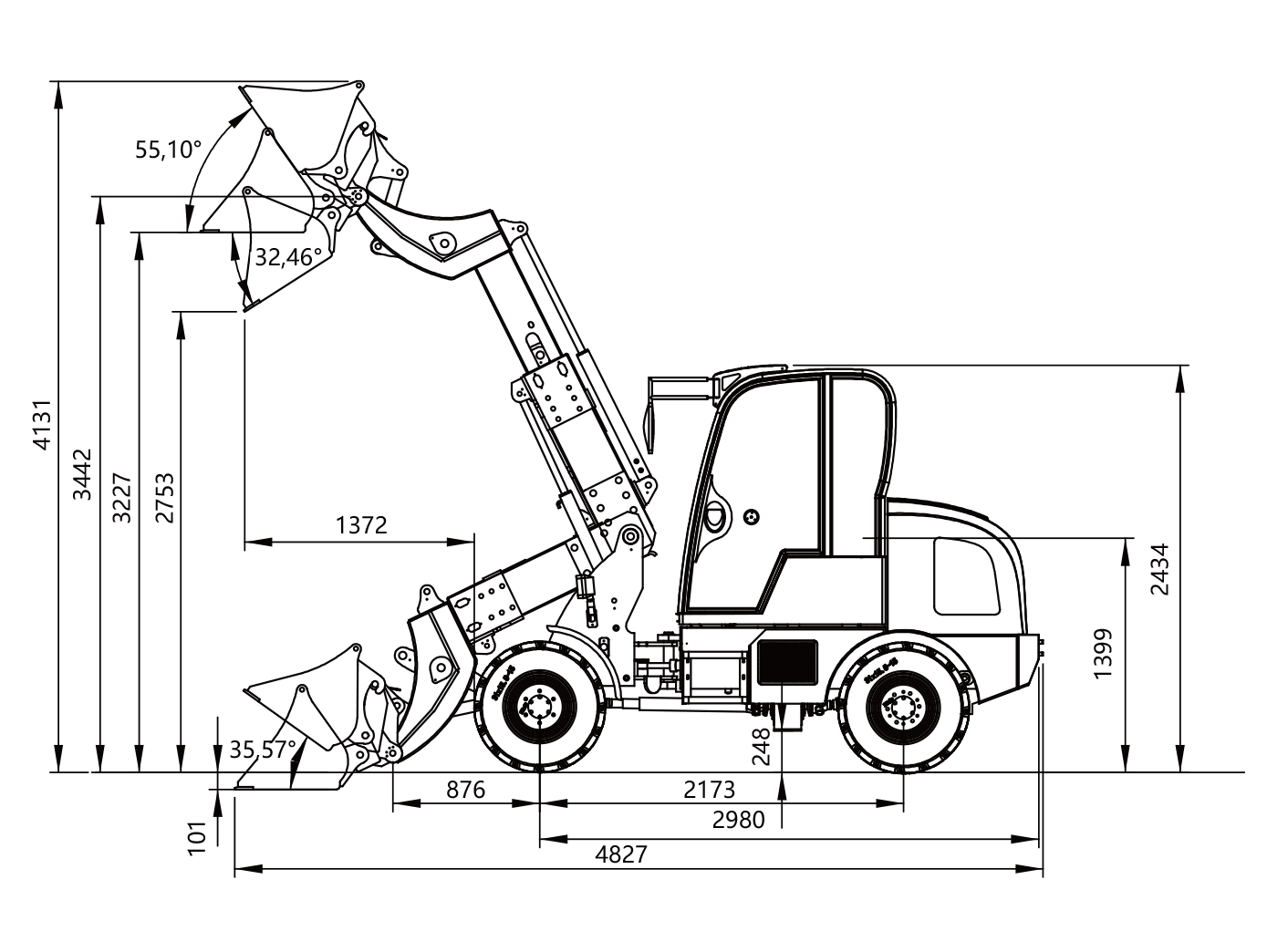

| Overall Size LxWxH(mm): | 4827×1520×2434 |
| Wheel base (mm): | 2173 |

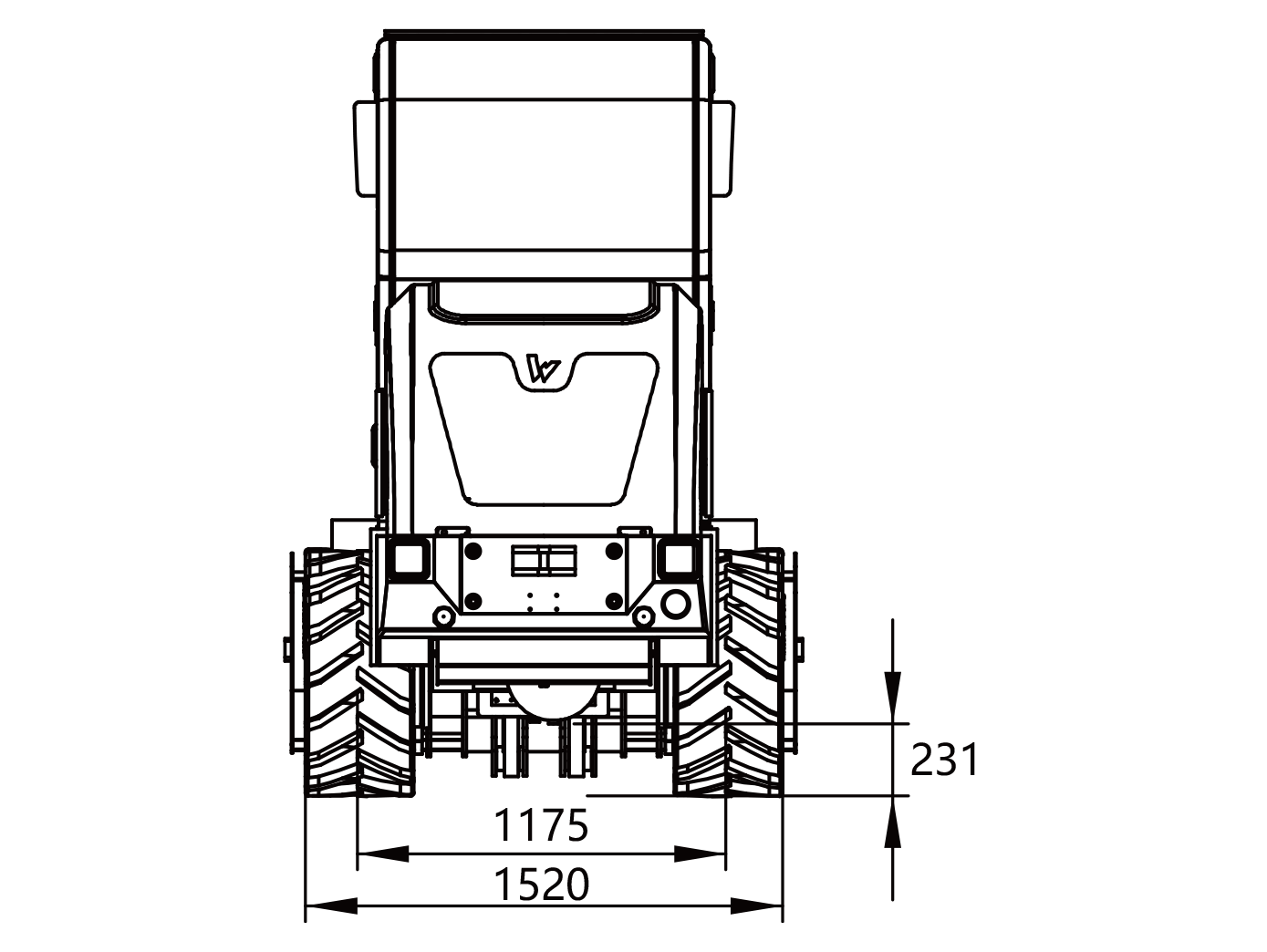

| Wheel thread(mm): | 1175 |
| Max.breakout force (KN): | 32 |
| Max.dump height(mm): | 2753 |
| Dump distance(mm): | 1372 |
| Total time(s): | 8 |
| Operating Weight(kg): | 3000 |
| Tyre: | 825-16/10-16.5/29x12.5-15/31x15.5-15 |
