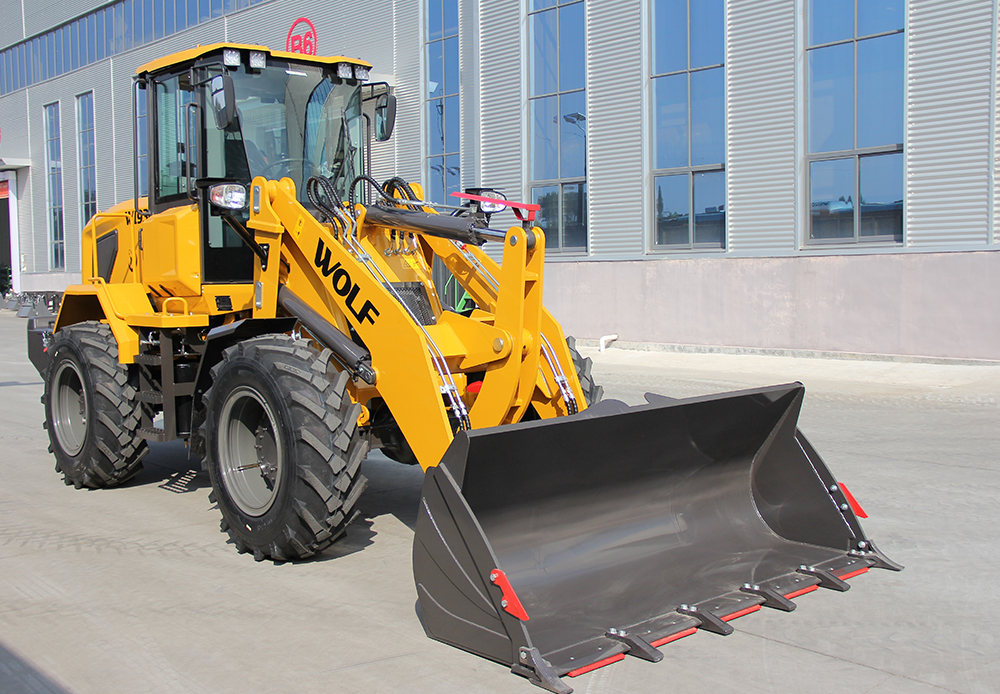

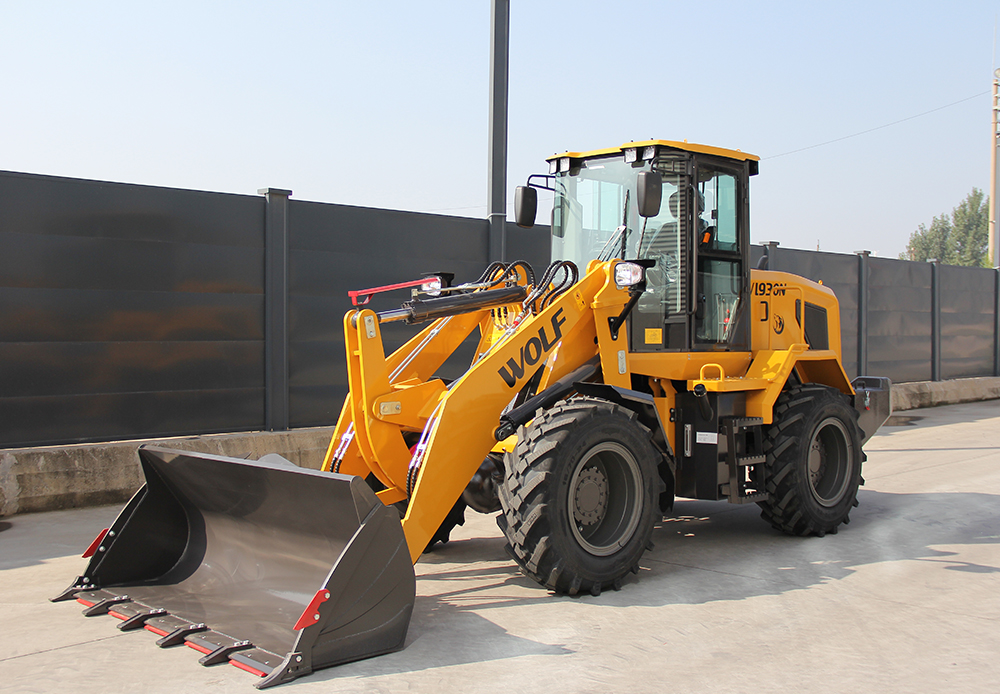

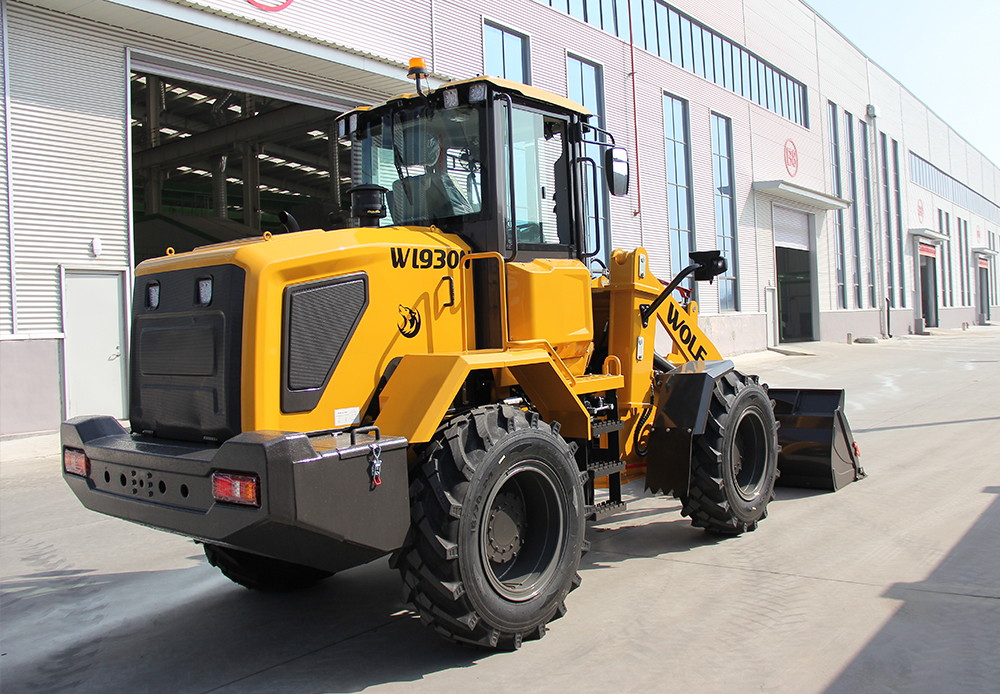

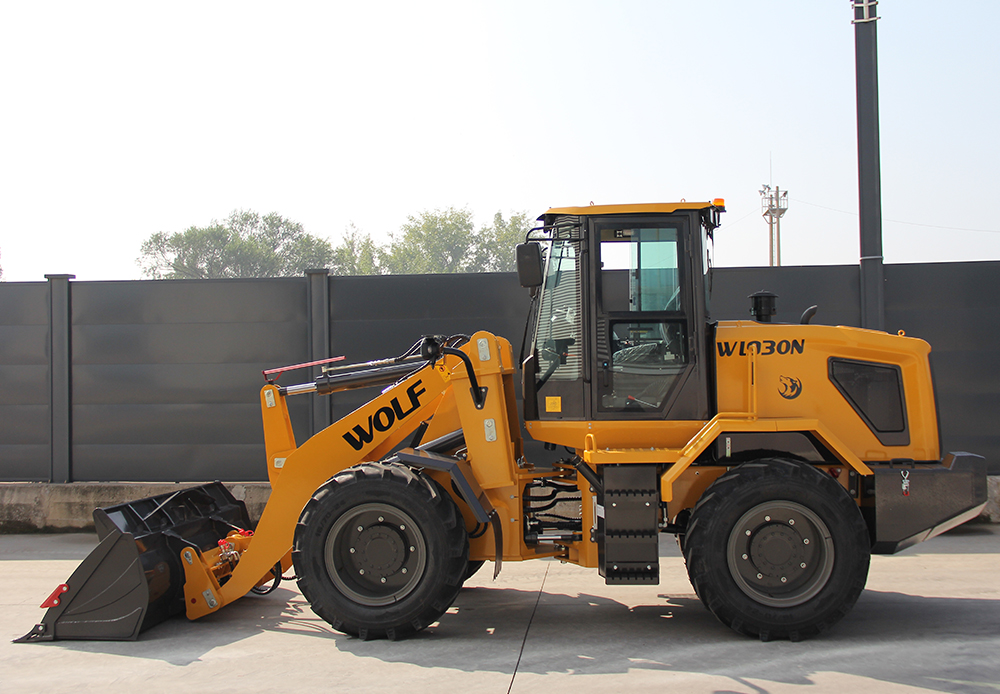

WL930
SPECIFICATIONS
Dimensions(mm)
6200×2100×2800
Engine Model
YTO YT4A4Z-24
Power(KW)
85
Introduce
Standard Configurations:
YTO YT4A4Z engine 85kw, 4WD,16/70-24wider tires, joystick, standard bucket, warning light, adjustable steering wheel and seat, bucket can be level automatic, back sound, radio, fan, hand brake, extinguisher, window hammer, Free parts, tool box.
Optional:
DF Cummins 4BT3.9-C100 engine, Quick hitch, air conditioning, joystick control,4th h heater, all kinds of attachments, etc.

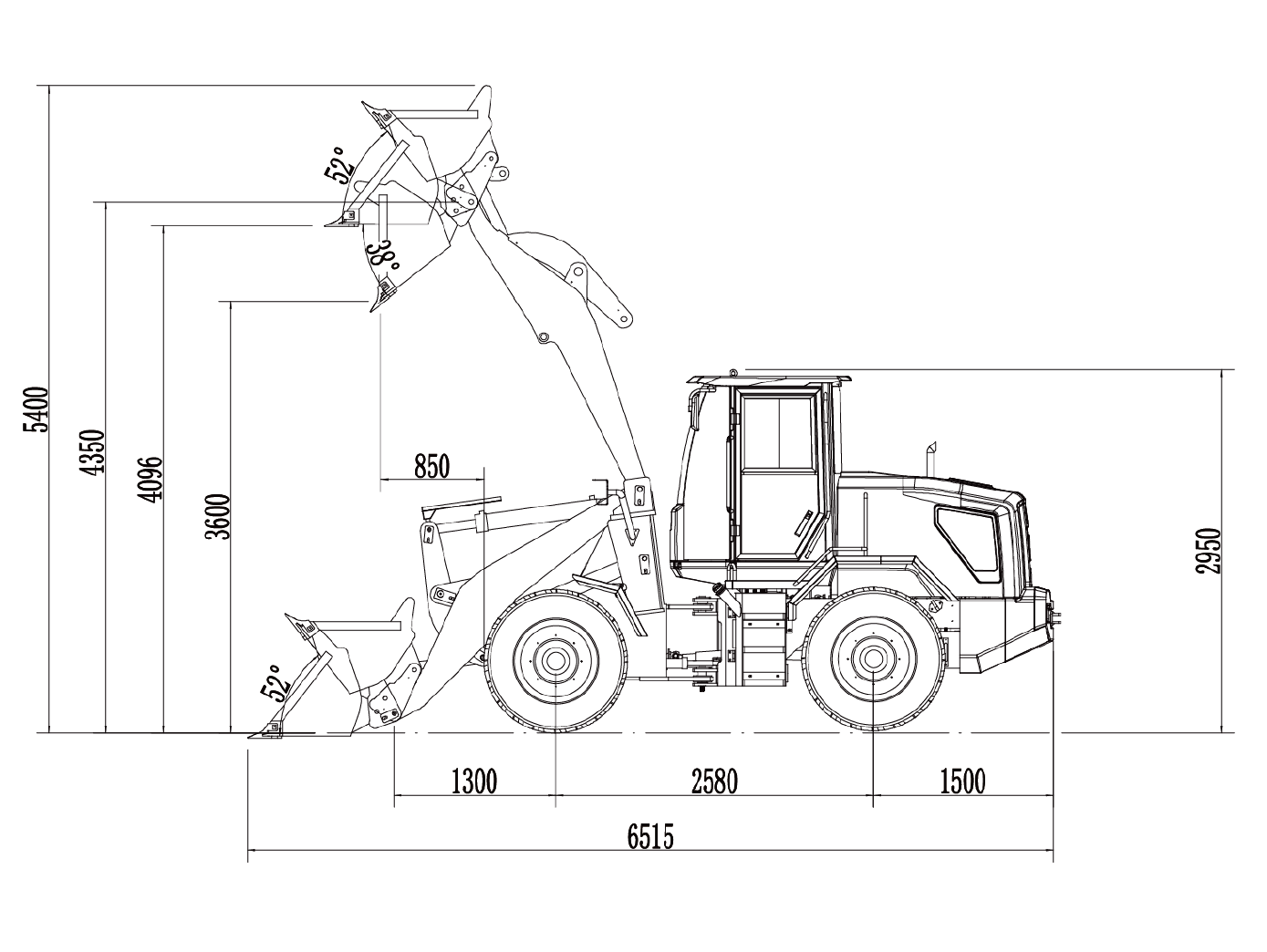

Specifications
| Type | Data |
|---|---|
| Bucket Capacity (Cbm): | 1.0-1.2 |
| Rated Load (Kg): | 2700 |
| Overall Weight (Kg): | 6800 |
| Dumping Clearance (mm): | 3600 |
| Standard Engine: | YTO YT4A4Z-24 |
| Rated Power (Kw): | 85 |
| Rated Speed (R/Min): | 2400 |
| Optional Engine: | CUMMINS/YU CHAI/CHANG CHAI |
| Wheel Base (mm): | 2600 |

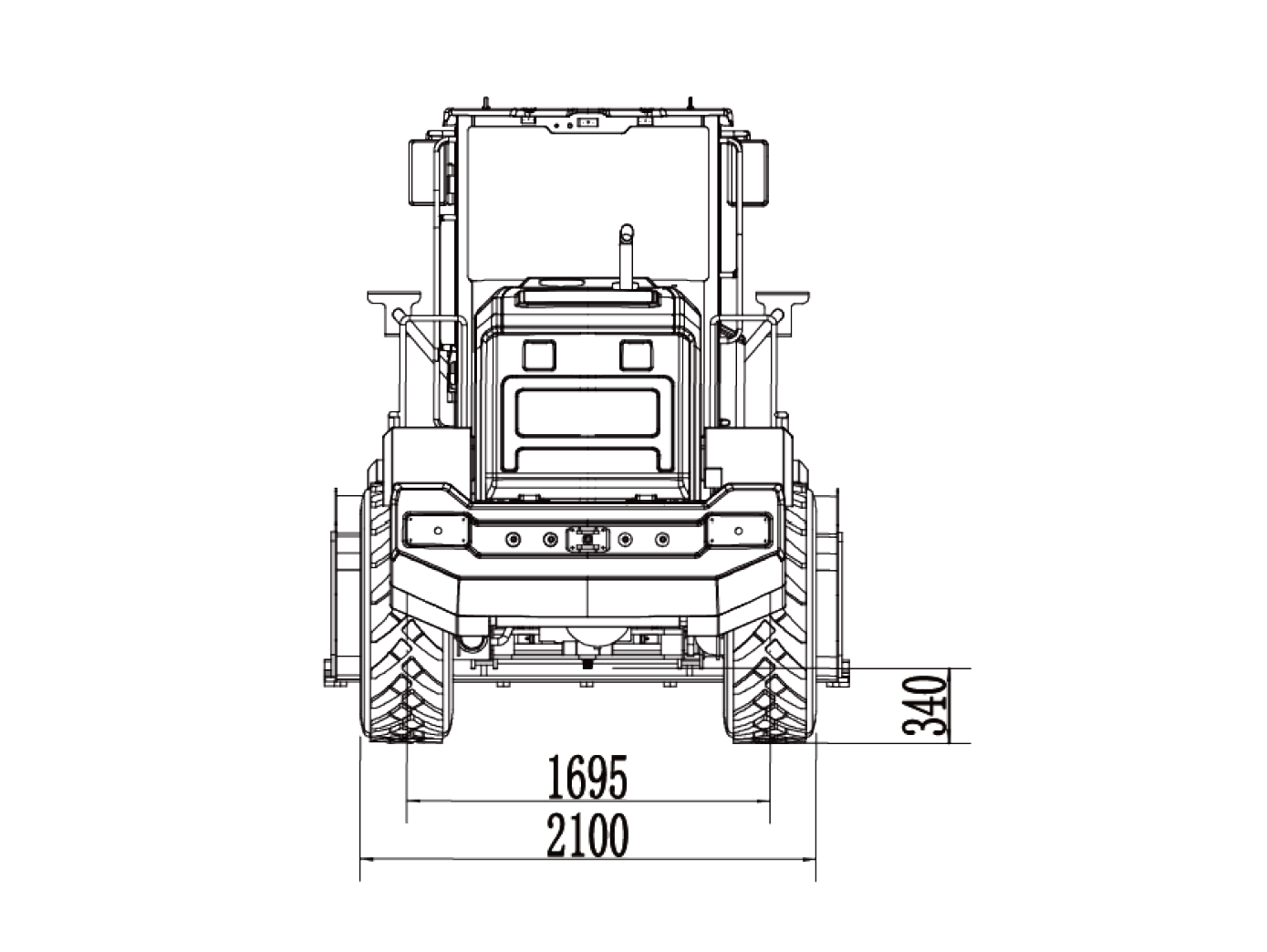

| Tread (mm): | 1640 |
| LX WXH (mm): | 6200×2100×2800 |
| Standard Tire: | 16/70-24 |
| Max. Driving Speed (km/h): | 20-30 |
